±45° Biaxial Carbon Fabric
Two fiber directions at +45° and −45°. Compare the orientation diagram, then confirm your complete layup.
View materialMaterials & Products
Multiaxial Fabrics
Select the carbon-fiber directions your laminate needs: biaxial, triaxial or quadraxial reinforcement.
Choose a fiber-direction structure
Carbon-fiber biaxial, triaxial and quadraxial constructions. Diagrams show fiber directions; the complete layer sequence is specified with your order.
0°/90° Biaxial Carbon Fabric
Two perpendicular fiber directions at 0° and 90°. Compare the orientation diagram, then confirm your complete layup.
View material
Triaxial Carbon Fabric
Three fiber directions in one reinforcement construction. Compare the orientation diagram, then confirm your complete layup.
View material
Quadraxial Carbon Fabric
Four fiber directions in one reinforcement construction. Compare the orientation diagram, then confirm your complete layup.
View materialCompare constructions
| Construction | Fiber-direction options | Fabric weight options |
|---|---|---|
| Biaxial ±45° | +45° / −45° | 200 / 400 / 600 g/m² |
| Biaxial 0°/90° | 0° / 90° | 200 / 400 / 600 g/m² |
| Triaxial | 0° / +45° / −45° or +45° / −45° / 90° | 600 g/m² |
| Quadraxial | 0° / +45° / 90° / −45° | 380 / 800 g/m² |

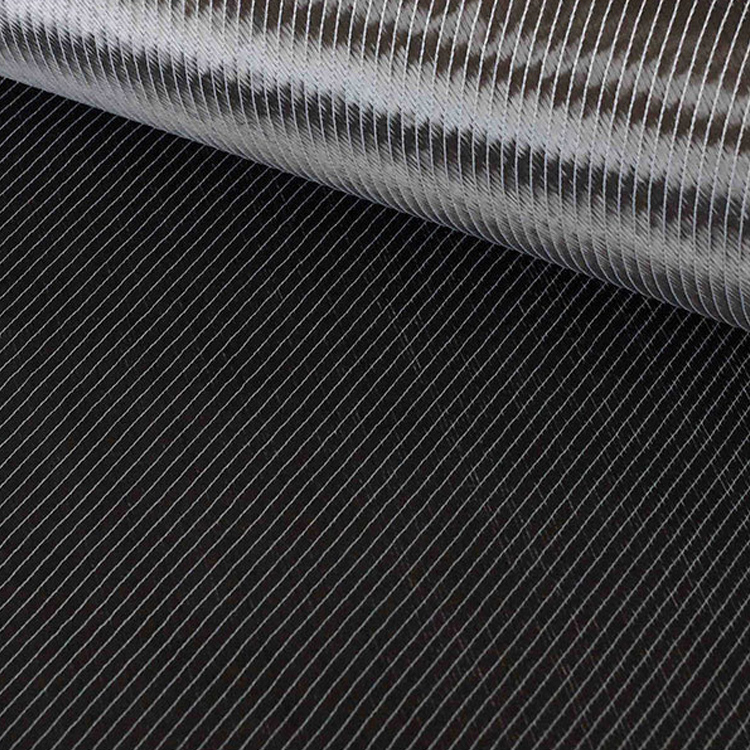

Fabric appearance
This series photograph shows the material appearance. Use the diagrams and configuration table to select the required fiber directions.
View existing directional references

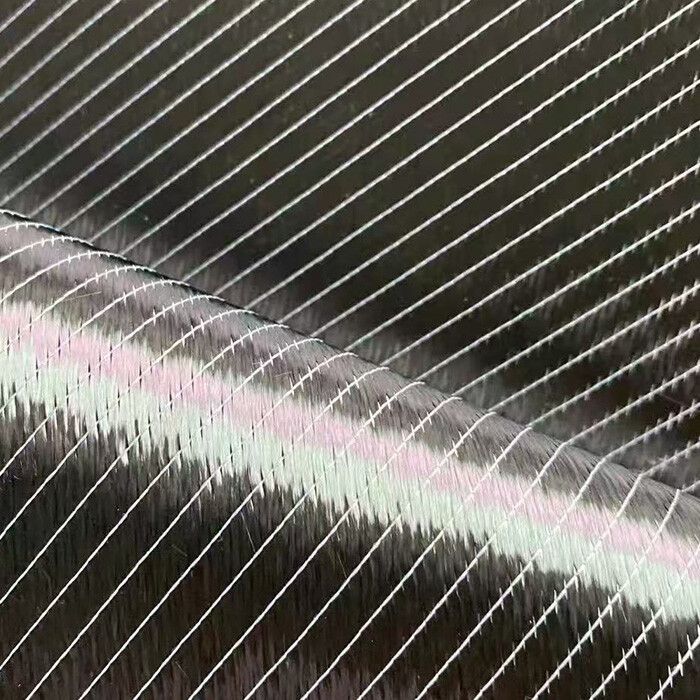

Axial Reinforcement Reference — 45°
Axial reinforcement reference labeled 45°. Confirm the complete layer stack, fabric weight and width; this reference does not specify a ±45° biaxial layup.
View material

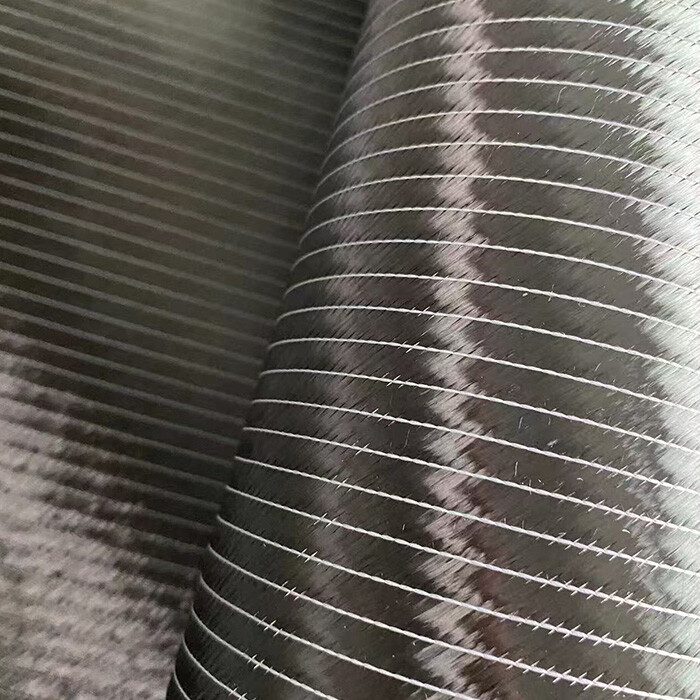

Axial Reinforcement Reference — 90°
Axial reinforcement reference labeled 90°. Confirm the complete layer stack, fabric weight and width; this reference does not specify a 0°/90° biaxial layup.
View materialDiscuss your specification
Send the material type, target specifications, quantity and application. Ask for a matching technical data sheet or sample.
