Carbon Fiber Sheet is manufactured using 100% carbon fiber reinforcement and epoxy resin matrix, cured under pressure at elevated temperature to produce a carbon fiber sheet with engineering-grade mechanical properties and a class-A surface finish.

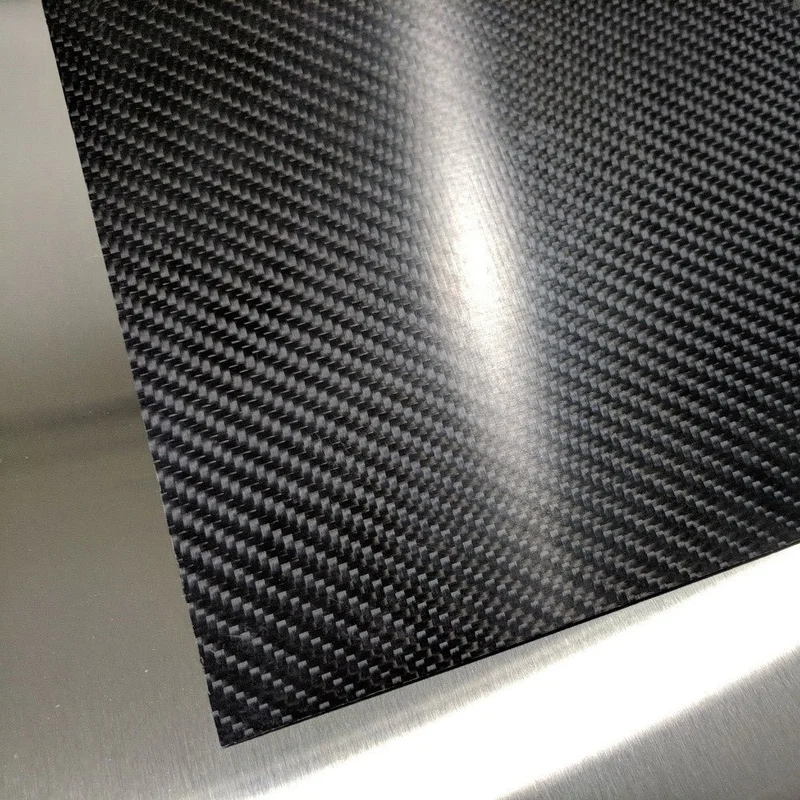

The sheet has the classic 2/2 twill, 3k woven carbon fiber appearance with a pin-hole free high gloss finish. The reverse of the sheet features an even-textured 'peel ply' finish suitable for secondary bonding.

3K carbon fiber: The most popular, most common carbon fiber. It gives the plate a classic carbon fiber look. 3K is the workhorse of carbon fiber. It's light, relatively stiff, and easy to get and make. 3K got higher elongation before failure and ultimate strength than 6K, 9K, or 12K. Because 3K is a smaller bundle of fibers, thinner fabric can be woven than with 12k, or thinner tubing can be filament wound, but if the fiber is the same grade, stiffness and strength are not affected by tow size. It is used in Aviation, the industrial field, architecture, sports, and recreational goods.

3k carbon fiber sheet has extremely high strength, light weight, with a shiny and clear appearance, widely used for model helicopter parts and the hobby market. It can be made into pure carbon fiber or glass fiber core with carbon fiber surfaces, thickness range from 0.2mm to 60mm; customized thicknesses and sizes are available. Stand for complete solution, we supply full-size to pre-cut panels, as well as CNC-machined parts to your specification. Maximum dimension is 8x3 meters.

Product Advantages

*30-40% lighter than aluminum

*5 times stronger than steel (at the same weight)

*very low thermal expansion

*good corrosion resistance

*attractive appearance

*vibration damping properties
